Product Description
Heat Shrink Tube for Oil Pipeline
Pipeline Engineering Tubing , Polyethylene Terephthalate Tubing is also known as heat shrink weld belt/Heat shrinkable weld sleeve (belt), Pipeline Engineering Tubing made by irradiation cross-linked polyolefin base material and special sealing hot melt adhesive. Pipeline Engineering Tubing/sleeves , Heat Shrink Polyethylene it has high mechanical strength, stable performance, aging resistance, anti chemical corrosion, sealing, strong adhesive strength, easy to operate, etc.
Pipeline Insulation Tape Product Application:
1, Apply to petroleum, nature gas, chemical engineering, fuel gas and others project pipeline network for anti-corrosion of steel pipeline repaired and welded junction.And also apply to corrosion resistant coating for repairing the breakage.
2, Apply to 2PE, 3PE, FBE,PP,CTE anti-corrosion coating pipeline for anti-corrosion of welded junction and bend area.
Specification:

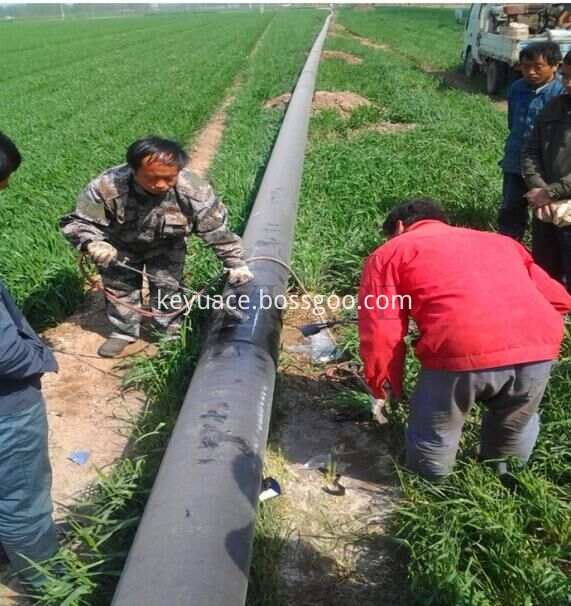

When using the heat shrink sleeves, first preheat the pipeline up to 55 degrees C ~60 degrees C, and then wrap the joint belt around the treated pipeline with the heat shrink joint belt, make sure that the heat shrink joint belt lap width is more than 50mm, it will shrink at radial direction when the heat effects on it, at the same time the hot melt adhesive start to melt, fill and cover the surface of the pipeline, form continuous and close anti-corrosion system with original pipeline anti-corrosion coating.
Executive Standard: SY/T0413-2002 and SY/T4054-2003 and GB-T23257-2009.
Features & Benefits
1, excellent adhesion ability, adhesion range is wide: can adhere with steel, PE, epoxy coating, etc.
2, strong in corrosion resistance:can effectively block a variety of medium permeability and corrosion, aging resistance, environment stress cracking resistance, resistance to UV irradiation.
3, High mechanical strength: compression resistance, shock resistance, shear resistance.
4, Wide use range: can instruct at -25~35 degrees C temperature range.
5, No volatilization, safety in use, can save energy, can protect environment
6, Long service life.
7, Shrink fast, easy to operate, simple to install.
8, low preheat temperature: when preheat -55 degrees C~60 degrees C, can install it to shrink.
|
Test standard
|
GB/T23257-2009(Buried steel pipe polyethylene anti-corrosion technology standard)
|
|
Text item
|
Unit
|
Test result
|
Technical date
|
Test method
|
|
Base material
|
|
Tensile strength
|
Axial direction
|
MPa
|
35
|
≥17
|
GB/T1040.2-2006
|
|
Circumference direction
|
MPa
|
28.3
|
≥17
|
|
Elongation at break
|
Axial direction
|
%
|
456
|
≥400
|
GB/T1040.2-2006
|
|
Circumference direction
|
%
|
432
|
≥400
|
|
Vicat softening point
|
℃
|
98.6
|
≥90
|
GB/T1633-2000
|
|
Brittle temperature
|
℃
|
<-65
|
≥-65
|
GB5470-1985
|
|
Electrical strength
|
MV/m
|
28
|
≥25
|
GB/T1408.1-2006
|
|
Volume resistance
|
Ω.m
|
2.1×1014
|
≥1×1013
|
GB/T1410-2006
|
|
environment stress cracking resistance
(F50, 50℃)
|
h
|
>1000
|
≥1000
|
GB/T1842-1999
|
|
Resistance to chemical medium corrosion(7d)
|
10%
HC1
|
Axial direction
|
Tensile Strength
|
%
|
88.4
|
≥85
|
GB/T2357-2009
|
|
Elongation at break
|
%
|
102
|
≥85
|
|
Circumference direction
|
Tensile Strength
|
%
|
95.3
|
≥85
|
|
Elongation at break
|
%
|
125.6
|
≥85
|
|
10%
NaOH
|
Axial direction
|
Tensile Strength
|
%
|
168
|
≥85
|
|
Elongation at break
|
%
|
96.6
|
≥85
|
|
Circumference direction
|
Tensile Strength
|
%
|
112
|
≥85
|
|
Elongation at break
|
%
|
96.3
|
≥85
|
|
10%
NaC1
|
Axial direction
|
Tensile Strength
|
%
|
98.5
|
≥85
|
|
Elongation at break
|
%
|
89.4
|
≥85
|
|
Circumference direction
|
Tensile Strength
|
%
|
123
|
≥85
|
|
Elongation at break
|
%
|
106.3
|
≥85
|
|
Heat aging resistance
(150℃,168h)
|
Axial direction
|
Tensile Strength
|
MPa
|
112
|
≥14
|
GB/T1040.2-2006
|
|
Elongation at break
|
%
|
96.3
|
≥300
|
|
Circumference direction
|
Tensile Strength
|
MPa
|
98.5
|
≥14
|
|
Elongation at break
|
%
|
89.4
|
≥300
|
|
Heat melt adhesive
|
|
Peel strength
(Cohesive failure)
|
Epoxy resin primer
|
N/cm
|
99.4
|
≥70
|
GB/T2792-1998
|
|
Polyethylene
|
N/cm
|
88.2
|
≥70
|
|
Model
|
Outer diameter.(MM)
|
Width
((MM)
|
Base film thickness(MM)
|
Heat melt thickness(MM)
|
length
(MM)
|
Fixed width(MM)
|
Sacrifice belt width(MM)
|
|
HWS 159
|
Φ159
|
500
|
|
