Product Description

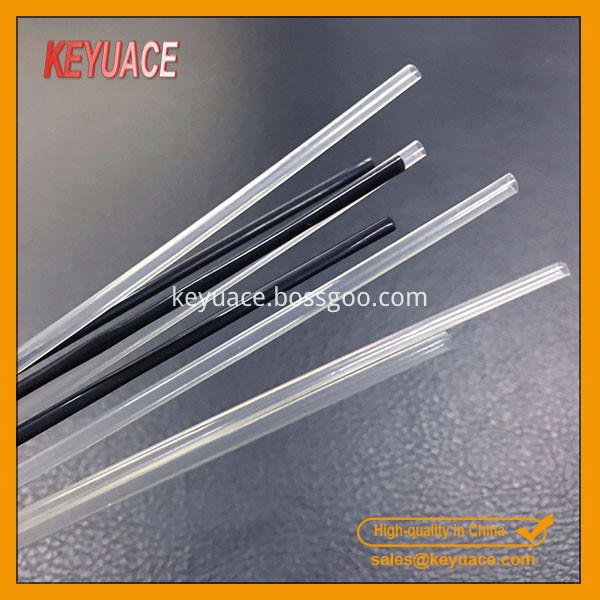

Bicycle Brake Wire Kynar PVDF Heat Shrink Tubing/Motorcycle brake wire KYNAR Heat Shrinkable tube
Motorcycle brake wire KYNAR Heat Shrinkable tube, Bicycle Brake Wire KYNAR Heat Shrink Tube is made of irradiation cross-linked special fluorine polymer PVDF ( polyvinylidene fluoride ). PVDF Wear-resistant heat-shrinkable tube, Car backstay Heat shrinkable tube with the advantages to transparency, flame resistance, high temperature resistance, chemical corrosion resistance, solvent resistance, cutting resistance, and so on. PVDF Heat shrinkable tube it mainly applies to motorcycle cable, automobile cables, brake lines, cables and electronic component for insulation protection. Friction resistant heat shrinkable tube , Durability Temperature Resistant, It`s also widely used in chemical equipment industry.
Features & Benefits:
1, quite thin wall, shrink ratio: 2:1, 3:1
2, High flame resistance: VW-1
3, Superior to tenacity, physical properties and chemical corrosion resistance
4, Withstand 600V
|
Product Property
|
Performance requirements
|
Test method
|
Test Date
|
|
Tensile strength
|
34.5Mpa min
|
ASTM D 2671
|
≥35MPa
|
|
Elongation
|
200% min
|
ASTM D 638
|
≥200%
|
|
Heat shock 275℃,4hrs
|
No cracking,
dripping or flowing
|
ASTM D 2671
|
Pass
|
|
Low temperature flexibility -55℃, 4hrs
|
No cracking
|
ASTM D 2671
|
Pass
|
|
Elongation after aging
|
100%
|
ASTM D 638
|
≥100%
|
|
Dielectric voltage
withstand
|
2500V.,60sec,no breakdown
|
ASTM D 2671
|
Pass
|
|
Volume resistivity
|
1014Ω.cm min
|
ASTMD876
|
≥1014Ω.cm
|
|
Corrosion
|
No corrosion
|
ASTM D 2671
|
Pass
|
|
Flammability
|
VW-1
|
≥UL 224
|
Pass
|
|
Part Number
|
Nominal Size(mm)
|
As supplied(mm)
|
After recovered (mm)
|
Standard Packing
(M/Roll)
|
|
(mm)
|
(inch)
|
D(min)
Inner diameter
|
D (max)
Inner diameter
|
t Wall thickness
|
|
KY150-012
|
1.2
|
3/64
|
1.2
|
0.6
|
0.25±0.05
|
1.2 / 100
|
|
KY150-016
|
1.6
|
1/16
|
1.6
|
0.8
|
0.25±0.05
|
1.2 / 100
|
|
KY150-024
|
2.4
|
3/32
|
2.4
|
1.2
|
0.25±0.05
|
1.2 / 100
|
|
KY150-032
|
3.2
|
1/8
|
3.2
|
1.6
|
0.25±0.05
|
1.2 / 100
|
|
KY150-048
|
4.8
|
3/16
|
4.8
|
2.4
|
0.25±0.05
|
1.2 / 100
|
|
KY150-064
|
6.4
|
1/4
|
6.4
|
3.2
|
0.30±0.08
|
1.2 / 100
|
|
KY150-095
|
9.5
|
3/8
|
9.5
|
4.8
|
0.30±0.08
|
1.2 / 100
|
|
KY150-127
|
12.7
|
1/2
|
12.7
|
6.4
|
0.30±0.08
|
1.2 / 100
|
|
KY150-191
|
19.1
|
3/4
|
19.1
|
9.5
|
0.43±0.08
|
1.2 / 100
|
|
KY150-254
|
25.4
|
1
|
25.4
|
12.7
|
0.48±0.08
|
1.2 / 100
|
|
KY150-381
|
38.1
|
11/2
|
38.1
|
19
|
0.51±0.08
|
1.2
|
|
KY150-508
|
50.8
|
2
|
|
