Product Description
KYNAR Heat Shrink Tube/ PVDF Heat Shrinkable Tube/
High temperature heat-shrinkable tubing

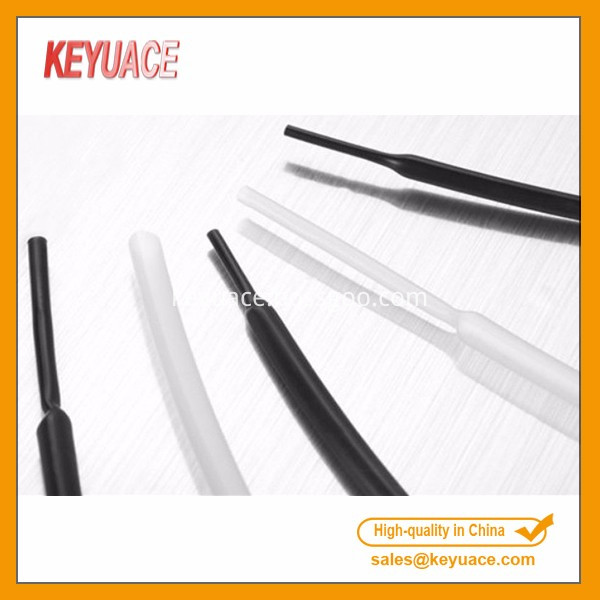

KYNAR Heat Shrinkable Tube, PVDF Heat Shrinkable Tube is made of irradiation cross-linked special fluorine polymer PVDF , KY-175℃ KYNAR Heat Shrinkable Tubing , Durability Temperature Resistant Polyolefin Tubing with the specialty of superior chemical and physical properties, high temperature resistance, high flame resistance, chemical solvent resistance, rub resistance, and so on. Special heat-shrinkable tube for handle protection of medical devices, High Temperature Resistant KYNAR HEAT SHRINK Tube it`s used in automobile, electronics, military, medical equipment and other fields and allies to industries: automobile, motorcycle cables,bicycle brake cables for insulation protection. Scalpel,coagulator knife, electric coagulation knife and other metal medical equipment for insulation protection.
Features & Benefits:
1, Semi-hard materials, thin wall design
2, Resistant to 175 degrees C
3, Shrink ratio: 2:1, 3:1
4, High flame resistance VW-1
5, Transparent design, inner player is visual when operating
Operating indexes:
Min. Shrink temp.: 155 degrees C
Recovered Shrink temp.: 175 degrees C
Working temperature: -55~175 degrees C
|
Product Property
|
Performance requirements
|
Test method
|
Test Date
|
|
Tensile strength
|
34.5Mpa min
|
ASTM D 2671
|
≥35MPa
|
|
Elongation
|
200% min
|
ASTM D 638
|
≥200%
|
|
Heat shock 275℃,4hrs
|
No cracking,
dripping or flowing
|
ASTM D 2671
|
Pass
|
|
Low temperature flexibility -55℃, 4hrs
|
No cracking
|
ASTM D 2671
|
Pass
|
|
Elongation after aging
|
100%
|
ASTM D 638
|
≥100%
|
|
Dielectric voltage
withstand
|
2500V.,60sec,no breakdown
|
ASTM D 2671
|
Pass
|
|
Volume resistivity
|
1014Ω.cm min
|
ASTMD876
|
≥1014Ω.cm
|
|
Corrosion
|
No corrosion
|
ASTM D 2671
|
Pass
|
|
Flammability
|
VW-1
|
≥UL 224
|
Pass
|
|
Part Number
|
Nominal Size
|
As supplied (mm)
|
After recovered (mm)
|
Standard Packing
(M/Roll)
|
|
mm)
|
inch)
|
D(min)
Inside diameter
|
d (max)
Inside diameter
|
t. Wall thickness
|
|
KY175-012
|
1.2
|
3/64
|
1.2
|
0.6
|
0.25±0.05
|
1.2 / 100
|
|
KY175-016
|
1.6
|
1/16
|
1.6
|
0.8
|
0.25±0.05
|
1.2 / 100
|
|
KY175-024
|
2.4
|
3/32
|
2.4
|
1.2
|
0.25±0.05
|
1.2 / 100
|
|
KY175-032
|
3.2
|
1/8
|
3.2
|
1.6
|
0.25±0.05
|
1.2 / 100
|
|
KY175-048
|
4.8
|
3/16
|
4.8
|
2.4
|
0.25±0.05
|
1.2 / 100
|
|
KY175-064
|
6.4
|
1/4
|
6.4
|
3.2
|
0.30±0.08
|
1.2 / 100
|
|
KY175-095
|
9.5
|
3/8
|
9.5
|
4.8
|
0.30±0.08
|
1.2 / 100
|
|
KY175-127
|
12.7
|
1/2
|
12.7
|
6.4
|
0.30±0.08
|
1.2 / 100
|
|
KY175-191
|
19.1
|
3/4
|
19.1
|
9.5
|
0.43±0.08
|
1.2 / 100
|
|
KY175-254
|
25.4
|
1
|
25.4
|
12.7
|
0.48±0.08
|
1.2 / 100
|
|
KY175-381
|
38.1
|
11/2
|
38.1
|
19
|
0.51±0.08
|
1.2
|
|
KY175-508
|
50.8
|
2
|
50.8
|
25.4
|
0.58±0.08
|
1.2
|
Colors: Black, transparent, red and blue
Pointed is availabe according to customers' requests.
